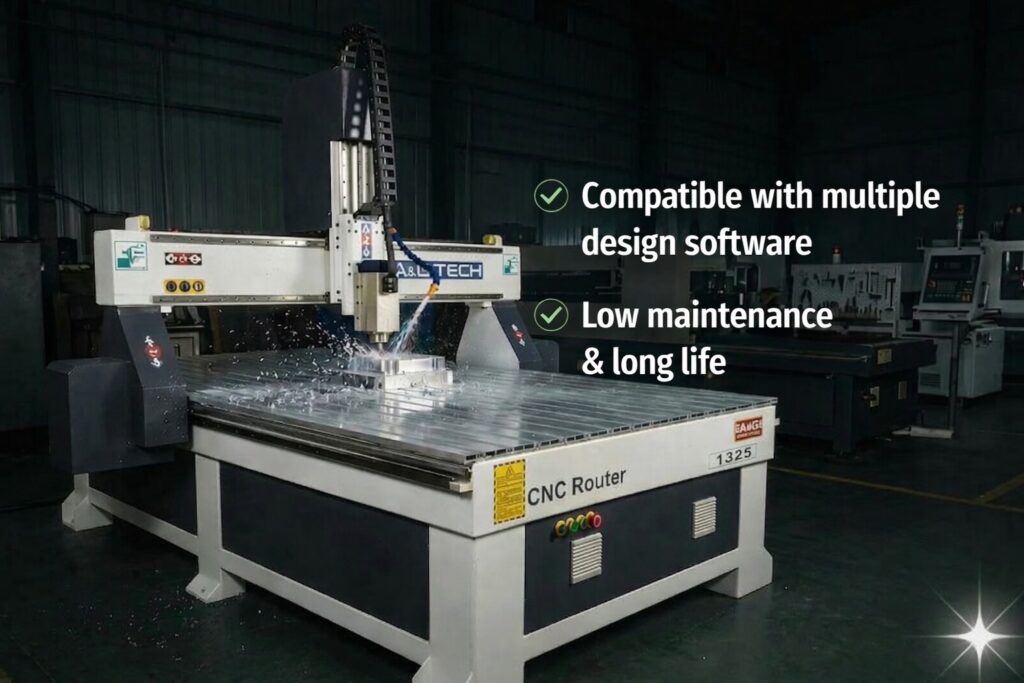

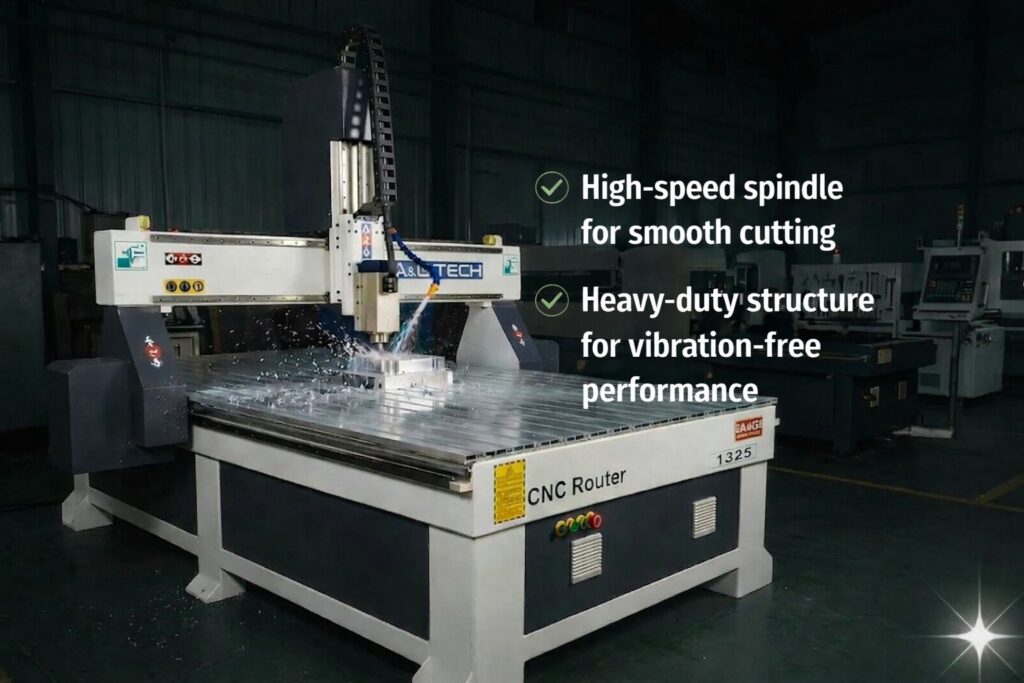

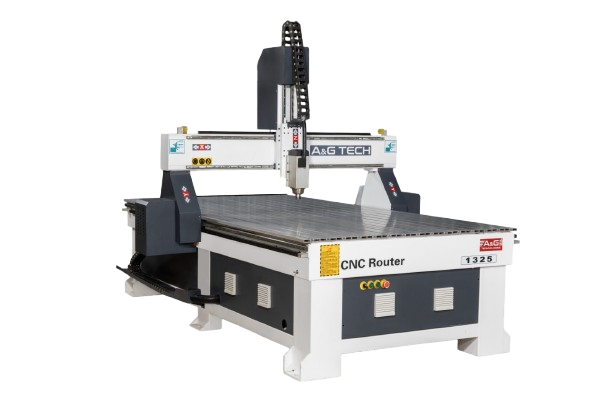

Our CNC Wood Router Machine is a versatile and robust solution designed specifically for modern woodworking and industrial fabrication. Whether you are running a large-scale furniture factory or a specialized signage shop, this machine provides the precision and speed required to stay ahead of the competition. Moreover, the heavy-duty iron cast frame ensures vibration-free operation, which is essential for high-quality 3D engraving and intricate designs.
Immediate Contact No:
📞 9915144219
📞 8427644219
Our CNC Wood Router Machine is designed for heavy-duty industrial applications. Whether you are in the furniture industry or signage production, this machine offers unmatched accuracy. Moreover, the heavy-duty frame ensures vibration-free operation for 3D engraving and MDF cutting.
Heavy-Duty Structure: Humari machine ka frame high-grade steel se bana hai jo vibration-free cutting deta hai. Moreover, isse machine ki life 10+ saal tak rehti hai.
High-Speed Spindle: 3.5kW se le kar 6kW tak ki powerful spindles available hain. Consequently, aap MDF, Plywood, aur Solid Wood par bina rukawat kaam kar sakte hain.
Automatic Lubrication: Machine mein auto-oiling system hai jo maintenance ko asaan banata hai. Therefore, aapko baar-baar manual oiling ki tension nahi hogi.
Dust Collection System: Woodworking mein dhool (dust) bahut hoti hai, isliye humari machines dust collector support ke saath aati hain taaki aapka workshop saaf rahe.
At AG Technologies, based in Mohali, we focus on 100% customer satisfaction. Furthermore, we understand that a CNC Wood Router Machine is a big investment for your business. Consequently, we provide:
Lifetime Technical Support: Our experts are just a call away for any software or hardware issues.
Genuine Spare Parts: We stock all original parts like spindles, drivers, and sensors to ensure zero downtime.
Advanced Training: We teach your operators how to use Artcam, Aspire, or CorelDraw with the machine. Finally, this ensures you get the best output from day one.
In addition to high performance, our CNC Wood Router Machine offers great durability. Moreover, the precision of our machines is unmatched in the industry. Specifically, we ensure that every client gets 100% support. As a result, businesses in Mohali and across Punjab trust AG Technologies. Therefore, you can invest with complete confidence.
| Model | AGS-1325 | AGS-1530 |
|---|---|---|
| Outer Dimension | 2150 x 3300 x 1700 mm | 2200 x 3650 x 1550 mm |
| Working Area (X, Y, Z) | 1300 x 2500 x 200 mm | 1500 x 3000 x 200 mm |
| Spindle | 6 KW Air Cooled | 6 KW Air Cooled |
| Spindle Speed | 18000 RPM | 18000 RPM |
| Distance Between Bed & Gentry | 300 mm | 300 mm |
| Maximum Travelling Speed | 25 mtr/min | 25 mtr/min |
| Cutting Tool Diameter | Ø3 to Ø 16 mm | Ø3 to Ø 16 mm |
| Repeated Location | 0.025 mm | 0.025 mm |
| Operating System | DSP-Hand Held Controller | DSP-Hand Held Controller |
| Driving System | Stepper Motor | Stepper Motor |
| Power Supply | AC 420V / 3PH | AC 420V / 3PH |
| Weight | 970 Kg. | 1000 Kg. Approx |
These above written technical specifications are subject to change without any prior notice.
1. What materials can be cut with a CNC Wood Router Machine? Basically, aap is machine se MDF, Plywood, Solid Wood, Acrylic, ACP sheets, aur PVC boards ko bahut aasani se cut aur engrave kar sakte hain. In addition, soft metals jaise Aluminum par bhi thoda bahut kaam kiya ja sakta hai.
2. Is training provided after purchasing the machine? Yes, definitely! Since 2012, AG Technologies Mohali provide karta hai 100% on-site training. Humare engineers aapke workshop par aa kar machine setup aur software operating sikhate hain.
3. What is the power requirement for an industrial CNC Wood Router? Standard machines single-phase (220V) ya three-phase (440V) dono options mein aati hain, jo aapki workshop ki bijli ke hisaab se set ki ja sakti hain.
4. How can I maintain the accuracy of my CNC Router? Regular cleaning and timely lubrication are key. Furthermore, humari support team 24/7 available hai agar aapko technical help chahiye ho.
